The English might not have invented the breechloading shotgun, however they actually perfected it
This text initially appeared within the fall 2025 problem of Undertaking Upland Journal.
Capturing birds on the wing has been round for a number of hundred years. The game turned widespread in England within the 1800s and grew in reputation amongst England’s aristocracy as gun expertise superior. Whether or not the recognition of wingshooting drove the event of the shotgun or the event of the gun drove the expansion of the game is a topic for one more time. Suffice it to say, the assorted designs, innovations, and patents by the British gun-making commerce that got here out of the interval between 1850 and 1930 created each the side-by-side and the over-and-under shotguns we all know as we speak.
By the early 1800s, there was a well-established gun commerce in England that produced exquisitely made weapons. This was the flintlock period, and probably the most well-known of those English makers was Joseph Manton. Mr. Manton’s store produced weapons made by a group of craftsmen, every gunmaker a grasp of their craft who specialised in making a single element of the gun.
Joseph Manton’s Flintlock Weapons
Referred to as the godfather of the gun commerce, Manton employed a number of gunmakers early of their profession who left their very own marks on the gun commerce. Manton mixed superior craftsmanship with the most effective supplies of the time. He created lots of his personal enhancements in firearms and projectiles and produced the most effective weapons that might be made. This was the usual gun made by a store like Manton’s, and weapons like this have been merely often called “highest quality.”
Though these weapons have fastened barrels, are loaded from the muzzles with powder and shot, and relied on flint to spark when the hammers fell to ignite the powder, the flintlock fowling items of the early 1800s resemble the double barrel weapons we all know as we speak. Even then, shotguns had a side-by-side barrel association and a well-known form to their lock plates. These weapons additionally had acquainted serpentine-shaped hammers that have been manually cocked.
Nearly as good as weapons like Manton’s have been, the flintlock was lower than dependable, particularly in moist climate. Moreover, loading them was an acquired talent, to say the least. Joseph Manton invented and patented many enhancements in early renditions of the shotgun, one being a extra dependable ignition system known as the “tube-lock.” However the introduction of the percussion cap within the 1820s gave the tube-lock a brief existence.
Percussion caps are small, enclosed cylinders of copper or brass that include mercuric fulminate explodes when struck. Referred to as a “cap lock,” the gun’s motion has a nipple, which is hole and acts as a conduit to the rearmost a part of the barrel the place the powder is already packed. The cap rests on prime of the nipple. When struck by the hammer, it bursts and sparks the powder. The percussion cap was an unlimited enchancment over flint because it might be uniformly made en masse and was much more dependable.
Casimir Lefaucheux And Breech Loading Weapons
Enhancements in percussion caps and varied firing mechanisms adopted, however the largest change in gun expertise got here in 1851. A Frenchman named Casimir Lefaucheux launched breech-loading weapons to England. This marked the transition from muzzleloaders to breech-loading weapons.
Lefaucheux patented the “pinfire,” one of many first breechloading firearm designs, which shot a self-contained cartridge. The design has a side-by-side barrel association and uncovered hammers which can be cocked earlier than firing, just like the flintlocks and percussion weapons. Nevertheless, as a substitute of the person parts of the load being rammed in from the muzzle, a preloaded cartridge containing the ignition, propellant, and projectile match within the breech finish of the barrels. By rotating a lever on the underside of the gun, the muzzle finish of the barrels pivoted downward, elevating the again finish of the barrels to show the breeches.
The pinfire cartridges have been initially made with paper hulls and a small pin protruding perpendicular to the cartridge case, simply above its base. When the cartridge is positioned within the chamber, and the gun is closed, the pin stands out by a small gap behind the barrels, able to be struck by the gun’s hammers. This was a revolution in gun design that sped up the loading course of. It was extra dependable in wind and rain and was much more user-friendly than loading powder and shot from the muzzle.
The Adoption of the Breechloading Pinfire Gun in England
It took over 20 years to lastly catch maintain with the gunmakers and shooters in England, however by 1883, Joseph Lang, who later created the .470 NE massive recreation cartridge, was the primary main English gunmaker to make pinfire weapons in any actual numbers. Charles Lancaster, previously employed as a barrel maker by Mr. Manton, was additionally an early adopter of the pinfire as soon as he made weapons underneath his personal identify. Then, varied English gunmakers adopted this strategy. Lower than a decade later, the breechloader dominated the English gunmaking scene.
The brand new breechloading gun was far simpler to make use of than the muzzle-loading kind. The speed of fireplace additionally elevated, making these weapons effectively suited to the capturing of pushed recreation, which helped wingshooting’s reputation develop amongst England’s elite. Frequently trying to pace up the reloading course of, pairs of weapons additionally grew in demand. These have been two weapons made to be similar in each approach, so one might be shot while the opposite was loaded by another person with no noticeable distinction to the shooter.
Westley Richards Recordsdata A Bolting System Patent
The breechloading idea was revolutionary. It spawned new designs for weapons that “break” within the center and cargo from the again of the barrels. In September of 1858, Westley Richards the Youthful, son of the agency’s founder and namesake, filed the primary patent to say a prime lever and a rib extension as a bolting system for breechloading weapons. The bolt is the a part of the motion that mates to a corresponding slot or flat spot on the barrels of a breechloading gun, often called a “chew,” to lock a gun closed.
Mr. Richards’ idea included a rotating prime lever that bolted to a rounded piece of metal that extends from the barrels’ prime rib, previous the breeches, to maintain the barrels from falling open. The rib extension was filed to a barely oval form, thought to resemble the top of slightly woman’s doll; therefore, it is called a “doll’s head” extension. The highest lever was additionally spring loaded and snapped into the chew on the doll’s head, robotically locking the barrels closed. For the subsequent few many years, the doll’s head and snap lever was the one locking mechanism Westley’s used on its breechloading weapons. The doll’s head rib extension was adopted by many different makers.
Like W.R.&Co., different gunmakers appeared to make reloading faster with an motion that would lock robotically when the barrels are closed. That is recognized within the English gun commerce as a “snap” motion. In early manufacturing of the breechloading weapons, the locking mechanism was guide. Most acquainted might be the underlever patented by Henry Jones in 1859. Referred to as the Jones underlever, it makes use of a rotating bolt linked to a lever underneath the set off guard, and the lever must be manually rotated to open and shut the motion.
James Purdey’s Patents
Whereas a number of totally different patents have been submitted for a snap motion, James Purdey patented one of many first to make the most of two bites as a substitute of 1. Purdey’s model was one other pivotal growth of the breechloading gun.
James Purdey was additionally previously employed by Mr. Manton, primarily as a stocker, till he began making weapons underneath his personal identify in 1814. Purdey’s 1863 patent for “Enhancements In Breechloading Firearms” is taken into account some of the necessary developments in breechloading gun design. It was virtually universally adopted as the principle locking system in previous designs.
Described because the Purdey bolt, Purdey sliding bolt, or Purdey double under-bolt, the locking system prevents the barrels of breechloading weapons from falling open utilizing a bolt that slides backwards and forwards. These sliding bolts are flat items of metallic that match horizontally within the motion, are spring-loaded, and actuated by a lever. The primary weapons by Purdey’s incorporating the Purdey bolt have a lever in entrance of the set off guard that’s pushed with the thumb. When the lever is moved ahead, the flat bolts slide out of corresponding slots, known as “bites,” which can be reduce into the lumps of the barrels and permit the muzzles of the barrels to fall.
READ: Why Hunt With a Classic Shotgun?
The barrel lump is a hook-shaped extension of metallic on the underside of the barrels underneath the breeches. There are two barrel lumps in Purdey’s design, and each bites that mate to the bolt are reduce behind the lump. The 2 lumps mate to slots within the gun’s receiver and the entrance lump pivots across the hinge pin for the barrels to open and shut. When the barrels are rotated closed, the marginally curved lumps push the spring-loaded bolt again till the bolt engages with the chew and is held in place underneath strain from its spring.
In 1865, W.M. Scott—who owned and operated W. & C. Scott & Sons together with his brother, J.C. Scott—patented his model of the highest lever, the well-known “Scott spindle.” Meant to work as a snap motion, Scott’s lever was additionally spring-loaded however connected to the highest of a vertical shaft resembling the spindle on a stitching machine. On the backside of the spindle was a brief lever that pulled again the sliding bolt when the highest lever was pushed to the appropriate.
The Scott spindle was designed to work at the side of the Purdey thunderbolt. Collectively, this has been the prevailing bolting system for breechloading weapons ever since.

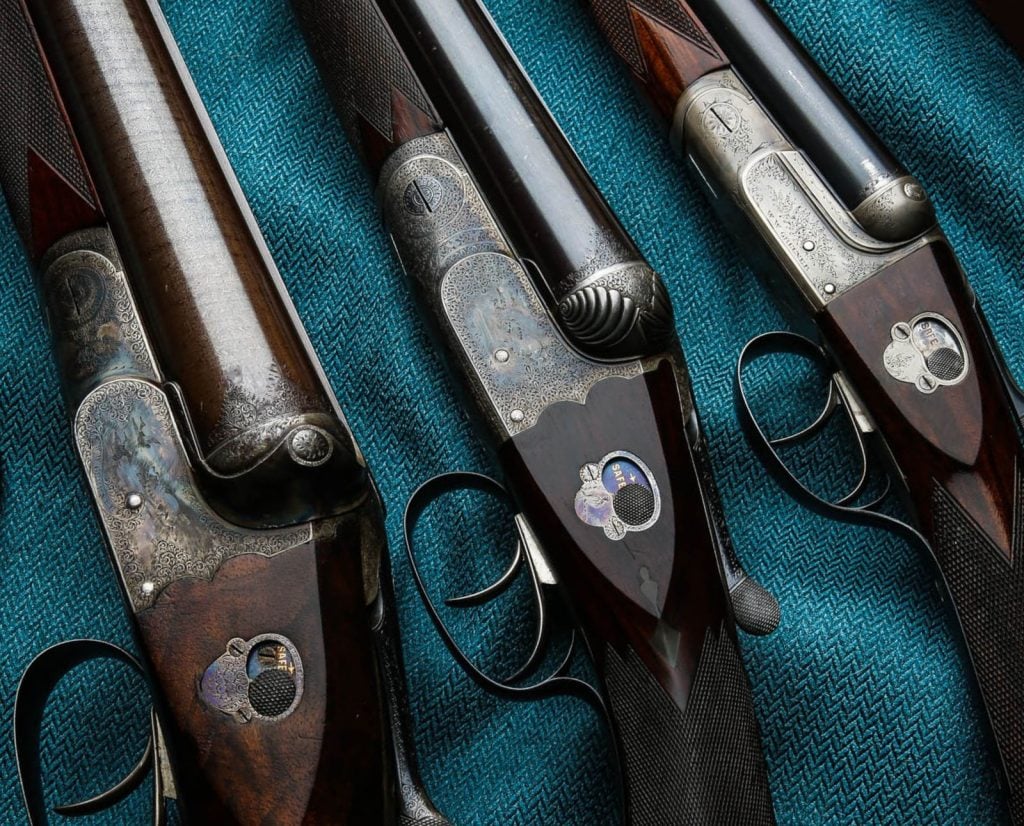

W.W. Greener And Choke Bores
The following massive growth within the breechloading weapons got here in 1875 when W.W. Greener pioneered choke bores in weapons to manage the sample of shot because it leaves the barrel. American gunsmiths are thought-about to be the primary to work on the idea of choke bore, nevertheless it was Greener who examined the idea to seek out the most effective form and constrictions, made the tooling, and introduced the method to manufacturing.
Greener had already achieved fame for his cross-bolt for breechloading weapons, patented in 1867. This created one of many strongest and commonest locking techniques that used a 3rd fastener, a chew or bolting system, included into an motion design along with the double Purdey underbolt.
A&D And Inner Hammers
In Could of 1875, William Anson and John Deeley (A&D), on behalf of Westley Richards & Co., filed the primary patent for an motion with inside hammers. Known as a “hammerless” gun, the hammers—known as tumblers—have been really contained in the motion physique. They have been robotically cocked by the autumn of the barrels when the gun was opened. The motion physique of the A&D had a sq., box-like form. Immediately, such a motion is called the “boxlock.”
Initially, the A&D motion used solely the agency’s patented doll’s head extension and snap lever. By the Nineties, it began to include the Purdey double underbite. The lock work, or mechanism that truly fires the gun, is an easy but sturdy design. It scales up and down effectively and makes nearly as good a double rifle for large recreation cartridges because it does a shotgun. Due to its simplicity, this motion didn’t require a excessive degree of talent to make. A serviceable, dependable model of it later lent itself to mass manufacturing. The A&D boxlock was the primary commercially profitable gun with out exterior hammers and stands as we speak as probably the most copied motion kind for breechloading weapons and rifles.
General, the hammerless motion made a stronger, extra dependable, and infinitely safer firearm. In simply a few many years, the sporting gun advanced by leaps and bounds.
Holland & Holland launched its Royal hammerless sidelock motion within the early Nineties. The form of the sideplates on the Royal motion initially included a prime edge that dipped and resembled a leg of mutton, a holdover from hammer gun designs. By 1894 or so, the lock plate advanced into the smooth, sloping form we all know as we speak.
The Self-Opening Motion
Corporations like Westley Richards & Co., W.W. Greener, and W. & C. Scott have been positioned within the midlands in industrial Birmingham, the center of the English gun commerce. The latter two adopted the boxlock idea with variations of their very own; this was the prevailing motion taken by the Birmingham makers.
To not be outdone, London makers hashed out their very own designs for hammerless weapons. The sidelock motion, which has the lock work mounted to the within of the lock plates that mate to the aspect of the motion physique, prevailed in London. In 1880, Frederick Beesley patented a spring-cocked, self-opening hammerless motion and bought it to Purdey’s.
READ: A Newbie’s Information to Amassing Classic Aspect-by-Aspect Shotguns
The primary of its sort, the Beesley patent used the leverage of closing the barrels to compress the mainspring and cock the tumblers. The higher arm of the highly effective V-shaped mainspring cocks the locks when compressed, and the underside arm of the spring drops the hammers when the set off is pulled. Two flat-sided cams pivoted on the hinge pin. The flat sides protruded by the water desk, or the flat aspect of the motion that the barrels relaxation on. These cams pressed towards the barrel flats. When the barrels are closed, the cams push on rods, compressing the mainsprings. When the gun is opened, strain from the higher arm of the mainspring pushes the rods towards these identical cams, forcing the barrels to open robotically when the highest lever strikes the underbolt rearward.
That is one more step in growing the pace at which a gun might be loaded. The self-opening motion has been utilized by Purdey’s, virtually unchanged, since 1880.
The First Ejectors
The following hurdle in dashing up the reloading course of was the automated clearing of the spent cartridges from the chamber. The primary environment friendly ejector was developed by English gunmaker Joseph Needham in 1874, and a flurry of patents adopted within the Eighties. Famed London maker Holland & Holland used a wide range of totally different ejector techniques, together with Needham’s, till they finally developed the Holland & Holland ejector within the early Nineties.
Many take into account the H&H ejector system to be probably the most dependable. It’s immensely easy and has been utilized by numerous different makers since its growth.
The Improvement of Gun Engraving
Purdey’s store was massively influential within the growth of each weapons and rifles. One in all its most recognizable contributions to gunmaking is its delicate scroll engraving. Developed by Purdey’s head engraver James Lucus, it’s recognized within the store as “customary superb” however universally as rose and scroll engraving.
When Lucus joined Purdey’s in 1855, Purdey’s engraving adopted the engraving type of the time—daring, comparatively sparse, and moderately easy. As Lucus’ profession progressed, the engraving on Purdey’s weapons turned a lot finer and tighter and lined extra space than in earlier eras. By the 1870s, Purdey’s engraving included a bouquet of roses surrounded by a fragile scroll, creating some of the iconic engraving patterns in gun making.
WATCH: In Our Veins – The Story of AYA Shotguns – A Undertaking Upland Movie

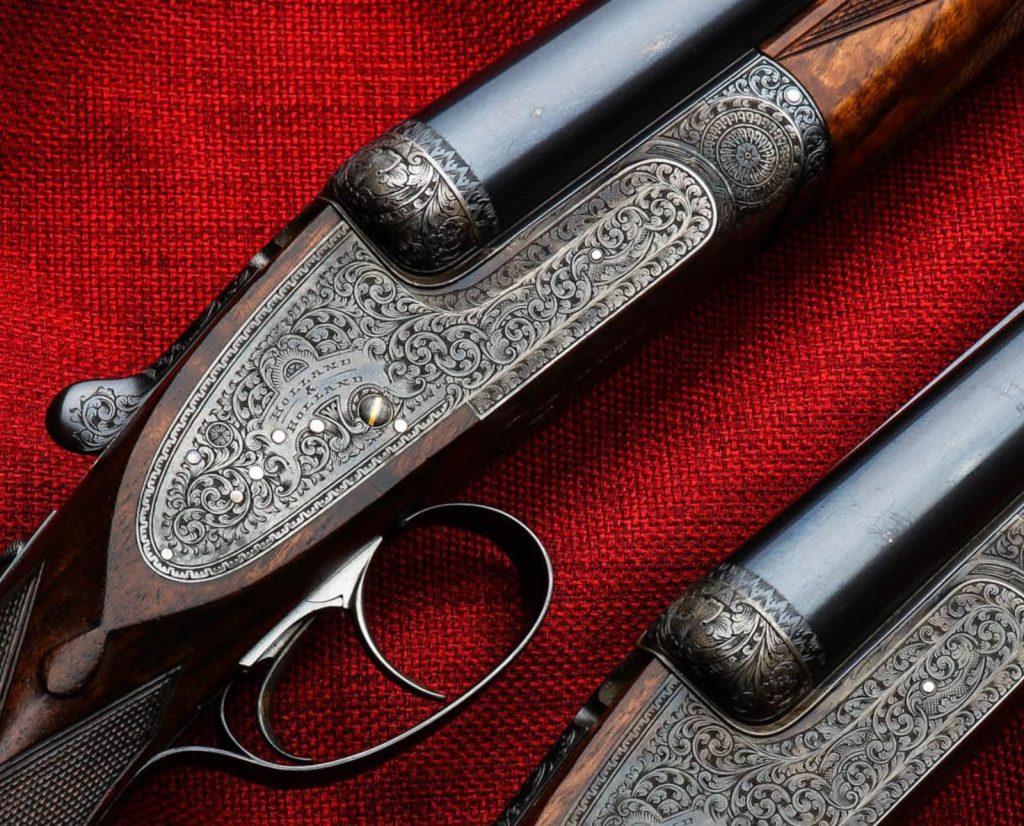

Like so lots of the different makers of the time, Holland’s adorned early Royal weapons with a Purdey’s-inspired rose and scroll engraving sample. Across the flip of the 20th century, Holland’s was trying to differentiate themselves and stepped away from this almost common engraving. Holland’s launched a scroll patterned after the vines of the acanthus plant—a theme impressed by the Arts & Crafts motion of the identical time interval. This turned often called the “Royal” sample, this has been Holland & Holland’s home engraving since.
Boss & Co. Single Set off Developments
Thomas Boss, who was additionally a former worker of Joseph Manton’s, made a reputation for himself promoting well-made hammer weapons of various varieties. Nevertheless, the agency bearing his identify is accountable for many necessary developments in breechloading firearms. It additionally created the archetype of the fashionable over/underneath shotgun.
In 1891, John Robertson purchased the rights to the Boss & Co. agency from Thomas Boss’ surviving relations. Very like Frederick Beesley, Robertson was a gunmaker for the commerce and instrumental within the design and building of weapons for different makers like Holland & Holland’s Royal. In 1893, underneath Robertson’s course, Boss & Co. launched its personal hammerless sidelock.
Robertson had two variations of a side-by-side motion, a conventional sq. physique, and the now iconic spherical physique. The inner components of the actions have been the identical, however the lock plates and bar of the spherical physique motion have been barely curved, and there was no bead on the motion. The grip can also be rounded to enhance the motion and is freed from conventional drop factors. The spherical motion offers the gun a really smooth look and a really good really feel within the arms.
The First Profitable Single-Set off Design
In 1894, John Robertson additionally patented the primary profitable single-trigger design. Many manufacturers tried to invent one set off that fires each barrels individually, however couldn’t provide you with a dependable design. Robertson found out that the shooter inadvertently hits the set off underneath recoil upon capturing the primary barrel, involuntarily pulling the set off a second time. Robertson got here up with a turret design that used the involuntary pull to actuate the set off to fireplace the second barrel. An advanced design that required particular experience to make, the Boss & Co. set off is each revered by collectors for its ingenuity and feared by gunsmiths for its complexity.
Swept Triggers
Robertson additionally launched different options that at the moment are thought-about customary on all greatest weapons. One instance is the swept set off, which was curved for the right- or left-hand shooter. Robertson realized the set off was pulled again and to the aspect by a shooter’s finger, not straight again. He was the primary to tailor the form of the set off to the shooter.
The Improvement Of The Droplock

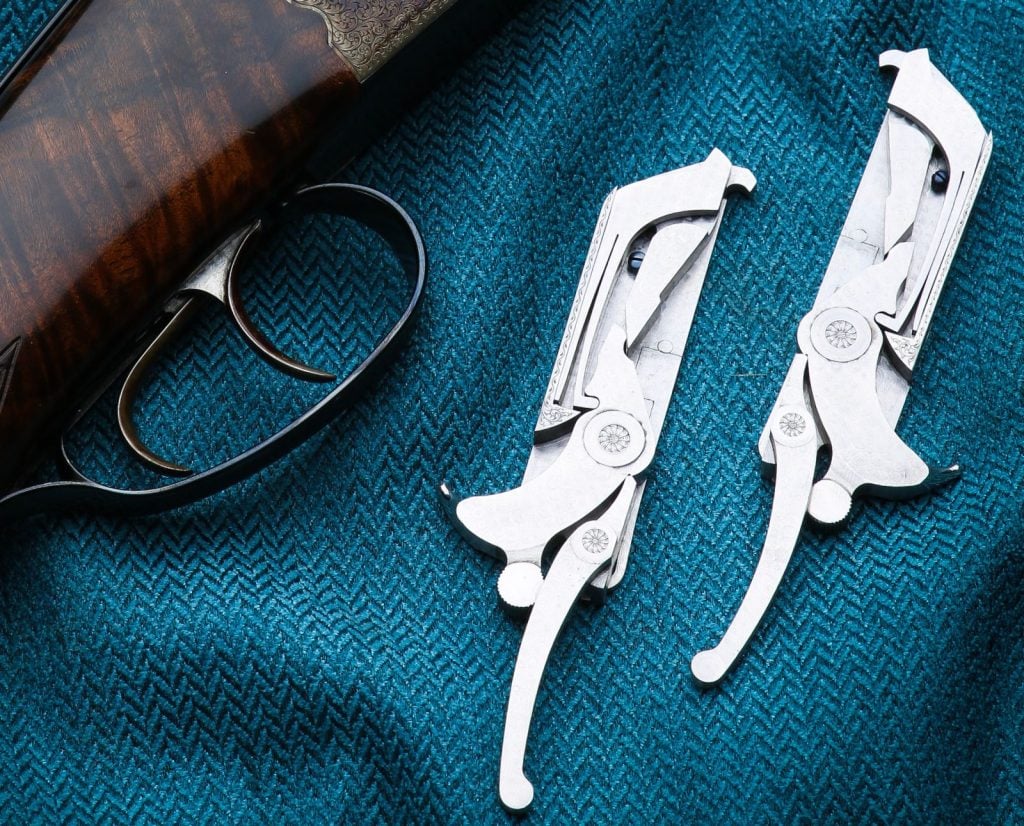

Westley Richards & Co. was already well-known for the Anson & Deeley hammerless motion of 1875, however in 1897, it took the motion to what many take into account the top of the boxlock design. By mounting the lock work to metallic plates that match inside longitudinal slots reduce within the motion physique and a plate on the underside of the motion, which is opened by the push of a button, the lock work might be eliminated with out the usage of instruments.
Formally often called a hammerless double barrel motion with hand-detachable locks, it was the primary double barrel motion with this function. It’s colloquially recognized as we speak because the “droplock.” Just like the A&D boxlock with fastened locks, the droplock is a quite simple design. However, not like the fastened lock model, the droplock could be very troublesome and expensive to fabricate. It has by no means been copied on any massive scale.
Like Boss’ spherical physique, Purdey’s self-opener, and Holland’s Royal, the droplock stays in manufacturing by Westley Richards & Co. as we speak. It is without doubt one of the most fascinating highest quality weapons made on the earth.
In 1909, Holland & Holland launched their very own hand-detachable lock. It included a lever rather than the pin that held the locks along with a dovetail on the entrance fringe of the lock plate. The lever might be turned with out the usage of instruments and allowed the removing of the lock plates for cleansing or servicing. Together with Westley Richards & Co.’s “droplock” of 1897, these two patents are landmarks for these companies and the gunmaking commerce as a complete.
Boss & Co.’s 1909 Over/Underneath Design
The side-by-side hammerless ejector was perfected by the Nineties. Every design gave the capturing world a number of the most elegant and enduring designs in firearms historical past. To supply one thing totally different, a number of makers experimented with stacking the barrels versus having them side-by-side, however the superposed barrel association is inherently tall, and these designs have been gainly and couldn’t compete with the slim, racy traces of the hammerless side-by-side.
Once more, Boss & Co.’s gifted Mr. Robertson solved the issue by successfully casting off the protruding hooks often discovered on the underside of side-by-sides’ barrels, and utilizing trunnions, a protrusion on the perimeters of the barrels that they may hinge upon, like a cannon. This created a really slim form regardless of having one barrel on prime of the opposite.
Robertson’s professional gunmaking expertise mixed with the gunmakers he employed, Boss & Co. 1909 O/U patent is among the many most elegant and coveted of all of the London-made weapons.
Last Early Developments in Breechloading Shotguns
Following the success of the Boss & Co. over/underneath, James Woodward launched his personal over-and-under shotgun in 1913. With the identical strategy as Robertson, Woodward’s design used a trunnion system, nevertheless it was a a lot easier design that was simpler to fabricate.
The Woodward over/underneath rivaled the Boss & Co.’s in each high quality and magnificence, examples of both gun being extraordinarily uncommon as we speak. Smooth and low-profile however comparatively easy to make, the Woodward sample is the predominant design utilized by Italian gun makers who’re well-known for over/underneath shotguns.
On the finish of World Battle II, James Woodward & Sons was bought to James Purdey & Sons. By no means capable of provide you with their very own reply to Boss & Co.’s over/underneath, Purdey’s model of the Woodward over/underneath is as iconic as we speak as its predecessors.
The final patent of observe within the growth of the fashionable breechloading gun is dated Could 18, 1922. It was granted to Holland & Holland for its self-opening mechanism. Comprised of solely three items, the mechanism was connected to the underside of the barrels, hidden underneath the forend, and labored whether or not the gun was fired or not. This was the ultimate refinement within the perfection of Holland’s hammerless sidelock ejector, which has been a function on the Royal ever since, in addition to the self-opening mechanism most frequently copied by different makers.
These English gunmakers have an extended historical past of innovation matched solely by their fame for superior high quality. Though lots of the ideas have been born someplace else or varied makes an attempt have been beforehand made, it was the British makers who got here up with options that might be patented and put into manufacturing observe. A method or one other, all different double-barrel weapons are primarily based on the innovations and patents of England’s gunmaking commerce.
Whereas the English might not have invented the breechloading gun, they actually perfected it.
